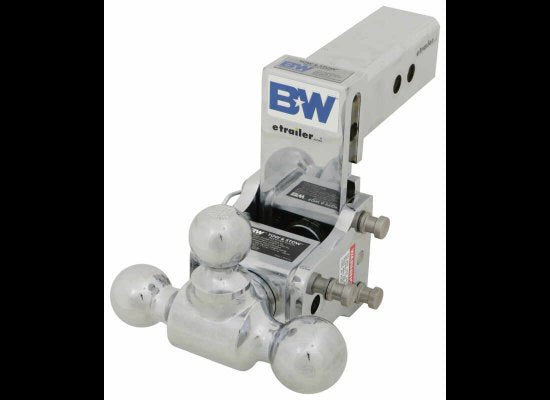

B&W TOW & STOW 3-BALL MOUNT, 2.5" HITCH, 5" DROP, 4.5" RISE, 18k - CHROME
$320.99
B&W TOW & STOW 3-BALL MOUNT, 2.5" HITCH, 5" DROP, 4.5" RISE, 18k - CHROME
Stow the ball and mounting platform on this tri-ball ball mount beneath your hitch for a sleek look when you are done towing. Tow up to 3,500 lbs with the 1-7/8" ball, 7,500 lbs with the 2" ball, or 18,000 lbs with the 2-5/16" ball.
Specs:
Application: 2-1/2" x 2-1/2" trailer hitch receivers
Gross towing weight:
When used with 1-7/8" ball: 3,500 lbs
When used with 2" ball: 7,500 lbs
When used with 2-5/16" ball: 18,000 lbs
Distance from center of hitch pin hole to center of hitch ball:
Hitch pin hole closest to ball: 9-1/4"
Hitch pin hole farthest from ball: 10-3/8"
Distance from center of hitch pin hole to pin hole in mounting block:
Pin hole closest to mounting block: 3-3/4"
Pin hole farthest from mounting block: 4-7/8"
Maximum drop: 5"
Maximum rise: 4-1/2"
Incremental height adjustment: 1"
TS20048C B and W Stow and Tow Triple Ball Mount - Model 8 - 1-7/8" Ball, 2" Ball, and 2-5/16" Ball - Chrome
