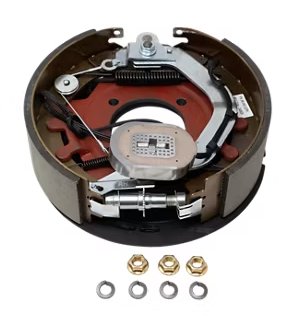

ELECTRIC DRUM BRAKE ASSEMBLY RH, 8K-9K Per Pair 12-1/4" X 3-3/8" , 4 BOLT - RETAIL BOXED

ELECTRIC DRUM BRAKE ASSEMBLY RH, 8K Per Pair 12-1/4" X 3-3/8" , 4 BOLT - RETAIL BOXED 12-1/4" x 3-3/8" 8,000lbs-9,000lbs(with a 4 bolt flange) Right hand electric brake. Complete assembly. Axle bore diameter: 3-7/8". Mounts with 4 bolts (not included). Locknuts-6-46 and bolts-7-97 sold separately. These components have passed the CSA Standard CAN3-D313-M85 For Trailer Running Gear, a stringent standard mandated by the Government to assure brake effectiveness and structural integrity of the components. ISO/TS 16949:2002 certified - Fits Dexter 8,000lb-9,000lb axles(with cast backing and 4 bolt flange) - For use with a 12 1/4" inside diameter and 3 3/8" depth drum - Shoes are 3-3/8" wide - Right hand(passenger side) - Complete assembly ready to install Details Brake Type: Electric Brake Brake Adjustment Type: Manual Adjust Brake Size: 12-1/4" x 3-3/8" Axle Capacity Rating Per Pair: 8K Brake Orientation: Right Side Brake Backing Plate Mounting Bolt Holes: 4 Brake Mounts To: Axle Brake Flange / Spindle Brake Magnet Shape: Oval Brake Backing Plate Material: Steel Brake Shoes / Pads Material: Semi-metallic
