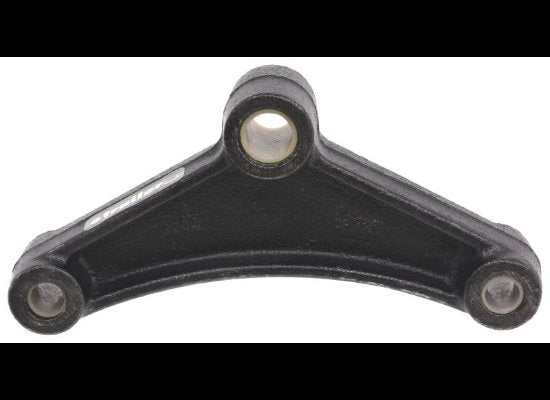

EQUALIZER 7-3/4" SPRING HOLE W 3/4" FRONT AND 9/16" CENTER BOLT
$34.49
Multi-Axle Cast Curved Shaped Equalizer for 1 3/4" Wide Double-Eye Leaf Springs - 7 3/4" Spring Hole Centers with 3/4" Front Spring Hole and 9/16" Equalizer Center Bolt Hole - Fits Universal Both Left or Right Side
Features:
Connects double-eye springs on dual- or triple-axle trailers
Springs attach to ends of equalizer with shackle straps (sold separately)
Equalizer is suspended from center hanger (sold separately)
Transfers load and sudden impacts from one axle to another by permitting movement between the axles
Distributes weight evenly
Results in smooth ride for trailer
Includes pressed-in nylon bushings
Specs:
Fits 1-3/4" wide, double-eye leaf springs with 9/16" spring eyes
Center bolt hole diameter: 3/4"
Left and right bolt hole diameter: 9/16"
Dimensions:
Distance between outer shackle bolt holes (center on center): 7-3/4"
Distance between hanger bolt hole and outer shackle bolt hole (center on center): 3-7/8"
Height from shackle bolt hole to hanger bolt hole: 2-7/8"
EQ-E34 TruRyde Curved Equalizer - 7-3/4" Long x 2-7/8" Tall
Replaces A2252CB34 Curved Equalizer - 7-3/4" Long x 2-7/8" Tall
