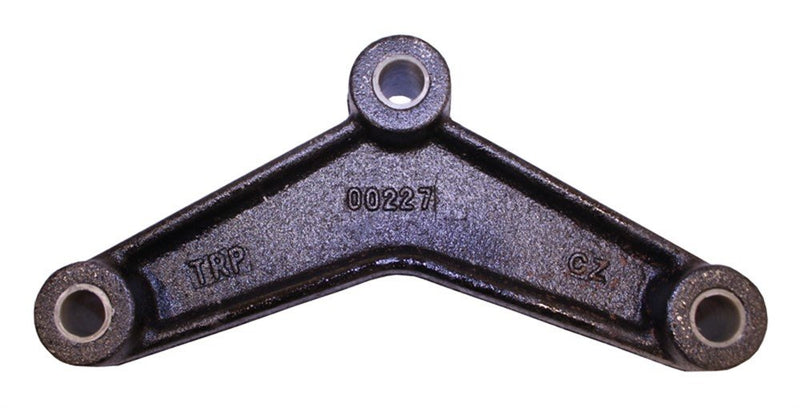

Equalizer for 1-3/4" Wide Double-Eye Springs - 7-3/4" Long - 9/16" Center Hole
$9.49
Multi-Axle Cast Curved Shaped Equalizer for 1 3/4" Wide Double-Eye Leaf Springs - 7 3/4" Spring Hole Centers with 9/16" Front Spring Hole and 9/16" Equalizer Center Bolt Hole - Fits Universal Both Left or Right Side
SKU: A2252CB Reference Number: 83400 Alternate Item Numbers 9000090
7-3/4" Long, curved equalizer connects double-eye springs on trailers with multiple axles. Allows for movement between axles to ensure a smooth ride.
Features:
Joins double-eye leaf springs on tandem- or triple-axle trailers
Springs attach to ends of equalizer with shackle straps (sold separately)
Equalizer suspends from center hanger (sold separately)
Transfers load and sudden impacts from one axle to another by permitting movement between the axles
Distributes weight evenly
Results in smooth ride for trailer
Specs:
Fits: 1-3/4" wide, double-eye leaf springs with 9/16" spring eyes
Center bolt hole diameter: 9/16"
Left and right bolt hole diameter: 9/16"
Dimensions:
Distance between left and right bolt holes (center on center): 7-3/4"
Distance between hanger bolt hole and side bolt hole (center on center): 3-7/8"
Height of side bolt hole to hanger bolt hole: 2-7/8"
