GEN-Y ADJUSTABLE 2-BALL MOUNT W/ STACKED RECEIVERS, 2-1/2" HITCH, 12" DROP OR RISE, 21K
$450.99
GEN-Y ADJUSTABLE 2-BALL MOUNT W/ STACKED RECEIVERS, 2-1/2" HITCH, 12" DROP OR RISE, 21K

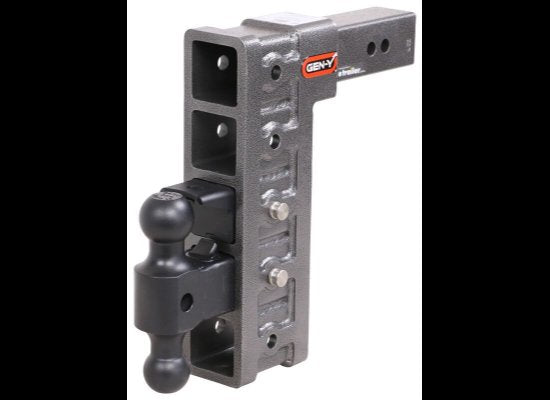

Insert this heavy-duty mount into your 2-1/2" hitch to get 5 stacked 2-1/2" receivers for mounting the included 2" ball, 2-5/16" ball, pintle hook, or other hitch-mounted accessory.
Specs:
Application: 2-1/2" x 2-1/2" trailer hitch receivers
Built-in receiver size: 2-1/2" x 2-1/2"
Maximum drop: 12"
Maximum rise: 12"
2" Ball capacity:
Gross towing weight: 16,000 lbs
Maximum tongue weight: 1,500 lbs
2-5/16" Ball capacity:
Gross towing weight: 21,000 lbs
Maximum tongue weight: 3,000 lbs
Overall height: 15-1/2"
Total length from center of pin hole with included ball mount installed: 13-1/4"
Total length from center of pin hole without ball mount installed: 10-1/4"
Distance from center of pin hole to first weld on shank: 4"
Distance from center of pin hole to base of receivers: 5-5/8"
Hitch pin hole diameter: 5/8"
Distance between pin holes: 1"
Accessory pin hole diameter: 5/8"
