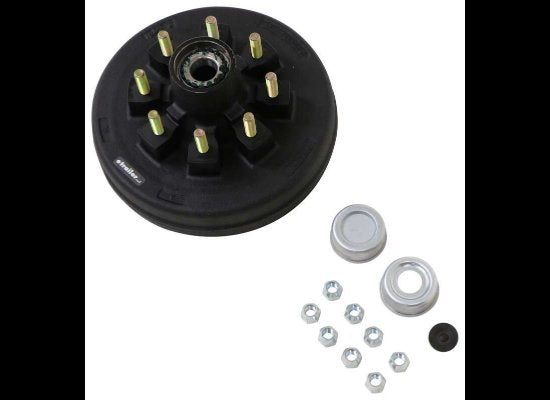

HUB AND BRAKE DRUM 12" 8 LUG 8X6.5 5.2K - 7K AXLE 9/16" LUG STUDS

HUB AND BRAKE DRUM 12" 8 LUG 8X6.5 5.2K - 7K AXLE 9/16" LUG STUDS Hub-and-drum assembly for your trailer. For electric or hydraulic brakes. Fits 7K Dexter E-Z Lube and etrailer Easy Grease axles. Inner bearing (25580) and race, outer bearing (14125A) and race, grease seal, grease cap, and lug nuts included. Specs: Application: 7,000-lb Dexter E-Z Lube and etrailer Easy Grease trailer axles with #42 spindles Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO Actual drum dimensions: 12" diameter x 2-3/8" long Works with 12" brake assembly Bolt pattern: 8 on 6-1/2 Wheel studs: 9/16" diameter x 1-5/8 long Grease cap flange diameter: 2.72" Weight capacity: 3,500 lbs Bearings (included) Inner bearing: 25580 (1.75" inner diameter) Outer bearing: 14125A (1.25" inner diameter) Races (included) Inner race: 25520 Outer race: 14276 Grease seal (included): GS2250DL Inner diameter: 2.25" Outer diameter: 3.376"
