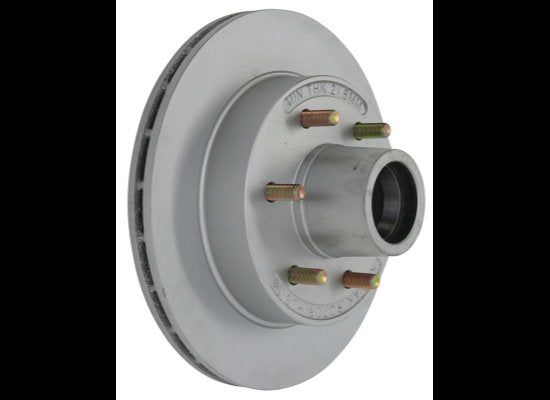

KODIAK 12" HUB AND ROTOR ASSEMBLY - 6X5.5 , 6 ON 5.5, DACROMET 5.2K - 6K, W/ RACES AND STUDS
$159.49
KODIAK 12" HUB AND ROTOR ASSEMBLY - 6X5.5 , 6 ON 5.5, DACROMET 5.2K - 6K, W/ RACES AND STUDS
Highlights
Easy drum to disc conversion: The single-piece design simplifies upgrades.
Superior corrosion resistance: Dacromet plating ideal for harsh environments.
Efficient heat dissipation: Vented design prevents heat-related damage.
Smooth and balanced ride: Integrated hub and rotor reduces runout.
Standard axle compatibility: Fits 5,200 to 6,000 lbs axles with ease.
Complete installation kit: Includes industry-standard races and 1/2" wheel studs.
Specs
Axle capacity: 5,200 lbs - 6,000 lbs
Wheel size: 15" and larger
Bolt pattern: 6 on 5-1/2"
Wheel bolt diameter: 1/2"
Rotor diameter: 12"
Bearing, Race, and Seal Information
Bearings (sold separately)
Inner bearing: 25580
Outer bearing: 15123
Races (included)
Inner race: 25520
Outer race: 15245
Grease seal (sold separately): 10-36
Inner diameter: 2.25"
Outer diameter: 3.376"
