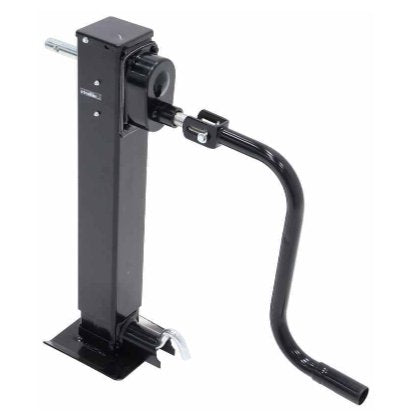

RAM 2-SPEED SQUARE DIRECT WELD ON JACK, SPRING RETURN DROP LEG, 25-7/8" LIFT 10K LIFT, 12K SUPPORT
$320.99
RAM 2-SPEED SQUARE DIRECT WELD ON JACK, SPRING RETURN DROP LEG, 25-7/8" LIFT 10K LIFT, 12K SUPPORT
Specs
Weight and Capacity
Lift capacity: 10,000 lbs
Support capacity: 12,000 lbs
Dimensions
Height (retracted): 28"
Height (extended): 40-1/4"
Total lift: 25-7/8"
Screw travel: 12-3/8"
Drop leg travel: 13-1/2"
Outer tube width: 4"
Inner tube width: 3-1/2"
Footplate dimensions: 8-1/4" long x 8" wide
Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
Distance from center of output shaft to top of jack: 5-1/2"
Gear Ratios
High gear ratio: 6.43 handle revolutions per inch of travel
Low gear ratio: 22.86 handle revolutions per inch of travel
*Special order item, not normally stocked at dealership, contact to order.
