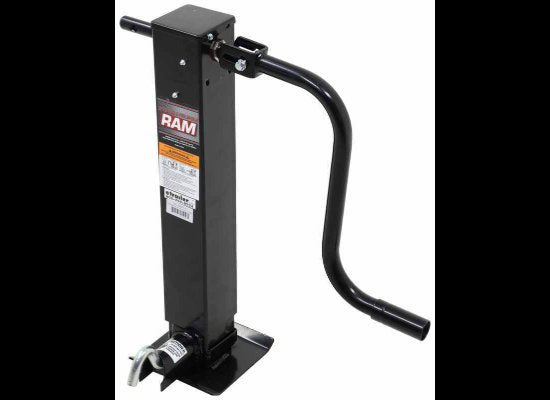

RAM SQUARE DIRECT WELD ON JACK, SPRING RETURN DROP LEG, 25-7/8" LIFT 10K LIFT , 12K SUPPORT,

RAM SQUARE DIRECT WELD ON JACK, SPRING RETURN DROP LEG, 25-7/8" LIFT 10K LIFT Pull the front-facing plunger pin on this jack to release the drop leg for 13-1/2" of lift on top of the 12-3/8" of screw travel. Durable screw offers increased strength. Built-in grease zerk allows simple greasing. Sidewind crank included. Features: Heavy-duty utility jack lets you raise and lower your trailer Ideal for agricultural and commercial applications Drop leg with spring return increases overall extension for maximum adjustability Plunger pin positioned to the front Durable 1" jack screw allows for heavy lifting Twin thrust bearings make extending and retracting jack easy Effortless greasing with built-in grease zerk Black painted inner and outer tubes Sidewind handle has curved edges - no sharp ends Handle can be secured for travel with included weld-on clip Footplate minimizes sinking in soft ground Weld-on installation Specs: Height: 28" Retracted 40-1/4" Extended Total lift: 25-7/8" Screw travel: 12-3/8" Drop leg travel: 13-1/2" Lift capacity: 10,000 lbs Support capacity: 12,000 lbs Outer tube width: 4" Inner tube width: 3-1/2" Footplate dimensions: 8-1/4
