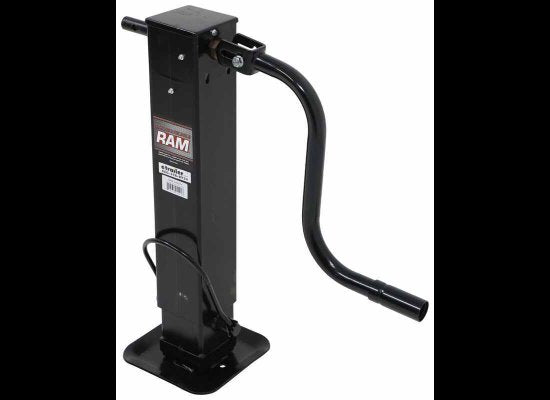

RAM SQUARE DIRECT WELD ON JACK, SPRING RETURN DROP LEG, 26-1/2" LIFT 12K LIFT , 20K SUPPORT

RAM SQUARE DIRECT WELD ON JACK, SPRING RETURN DROP LEG, 26-1/2" LIFT 12K LIFT , 20K SUPPORT Step on the dual-pin foot lever on this heavy-duty jack to release the drop leg for 13" of lift in addition to the 13-1/2" of screw travel. Durable screw offers increased strength. Built-in grease zerk allows effortless greasing. Features: Heavy-duty utility jack lets you raise and lower your trailer Ideal for agricultural and commercial applications Drop leg with spring return increases overall extension for maximum adjustability Easy-to-use foot lever positioned to the front Durable 1-1/4" jack screw allows for heavy lifting Twin thrust bearings make extending and retracting jack easy Effortless greasing with built-in grease zerk Black powder coated finish on inner and outer tubes Sidewind handle has curved edges - no sharp ends Footplate minimizes sinking in soft ground Weld-on installation Specs: Height (from bottom of foot to top of jack): 29-1/2" Retracted 56" Extended Total lift: 26-1/2" Screw travel: 13-1/2" Drop leg travel: 13" Lift capacity: 12,000 lbs Support capacity: 20,000 lbs Outer tube width: 4-3/8" Inner tube width: 4" Footplate dimension
