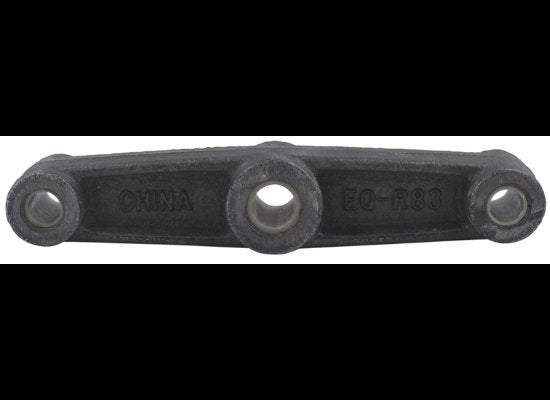

STRAIGHT EQUALIZER 8" , 3/4" HOLES FOR 1-3/4" WIDE DOUBLE EYE
$21.49
STRAIGHT EQUALIZER 8" , 3/4" HOLES FOR 1-3/4" WIDE DOUBLE EYE
8" Long straight equalizer connects double-eye springs on tandem- or triple-axle trailers and allows for enough movement between the axles to keep the ride smooth and the load undisturbed. Center bolt hole is 3/4" in diameter.
Features:
Connects double-eye springs on dual- or triple-axle trailers
Springs attach to ends of equalizer with shackle straps (sold separately)
Equalizer is suspended from center hanger (sold separately)
Transfers load and sudden impacts from one axle to another by permitting movement between the axles
Distributes weight evenly
Results in smooth ride for trailer
Nylon bushings included
Specs:
Fits 1-3/4" wide, double-eye leaf springs with 9/16" spring eyes
Center bolt hole diameter: 3/4"
Left and right bolt hole diameter: 9/16"
Dimensions:
Distance between outer shackle bolt holes (center on center): 8"
Distance between hanger bolt hole and outer shackle bolt hole (center on center): 4"
Height: 1-3/4"
EQ-R83 TruRyde Straight Equalizer - 8" Long x 1-3/4" Tall
Replaces A2251B3 Straight Equalizer - 8" Long
