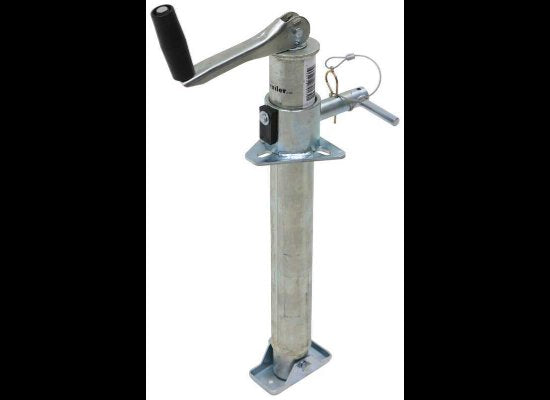

ULTIMATE TRAILER JACK, A-FRAME, TOPWIND, 27-1/2" LIFT, 2K LIFT, 3K SUPPORT.

ULTIMATE TRAILER JACK, A-FRAME, TOPWIND, 27-1/2" LIFT, 2K LIFT, 3K SUPPORT. Just pull the easy-to-access pin on this jack to drop the entire jack tube down for quick, easy adjustment. No drop leg needed. Seven height settings offer up to 12" of drop. Topwind handle allows for an additional 15-1/2" of screw travel. Features: Utility jack lets you raise and lower your A-frame trailer 7 Height settings allow for fast, easy positioning - no blocks or drop leg needed Lower the jack from the mounting bracket to get up to 12" of lift Manually crank the jack to achieve up to an additional 15-1/2" of travel Jack retracts to be flush with bottom of trailer frame Eliminates risk of damaging hang-ups or snags while traveling Specs: Bracket height: 1-3/4" with the jack fully retracted and the collar at the lowest setting 29-1/4" with the jack fully extended and the collar at the highest setting Total lift: 27-1/2" Travel by cranking the handle: 15-1/2" Drop tube: 12" - adjusts in increments of 2" Mounting bracket hole spacing (center on center): 3" x 3-1/4" Inner tubing diameter: 2" Outer tubing diameter: 2-1/4" Lift 2K, SUPPORT 3K, RDJ-2K The Ultimate Trailer Jack
